ABB+CI854A-eA 3BSE030221R2

Description

Product Name:

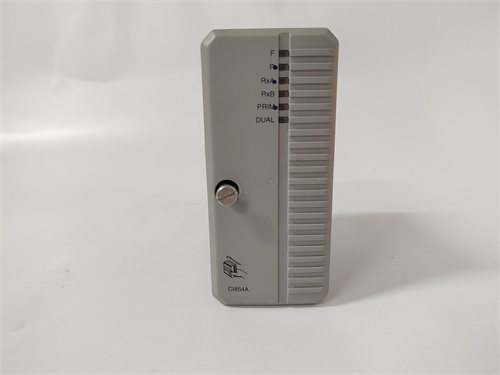

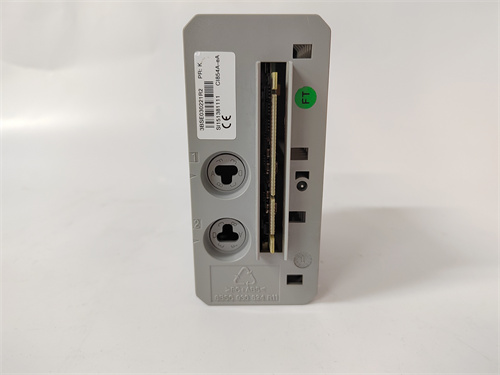

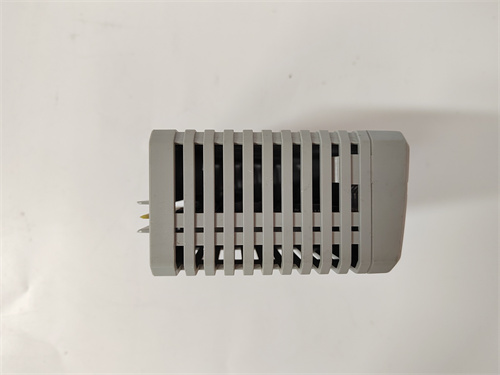

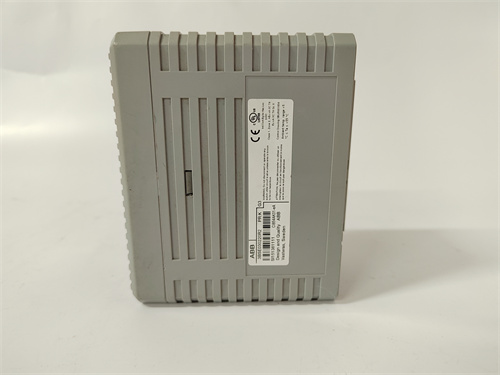

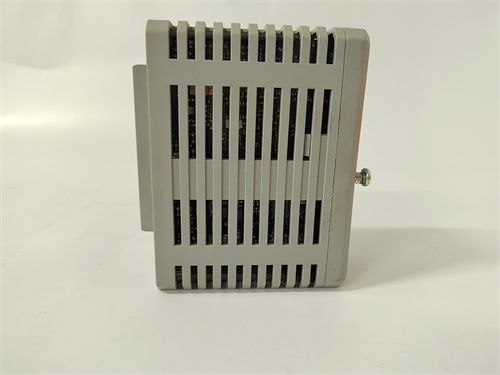

ABB CI854A-eA (3BSE030221R2)

Product Description:

The CI854A-eA module is a communication interface designed for integrating various field devices and controllers into the ABB 800xA system. This module supports Ethernet communication, which allows for high-speed, reliable data transfer in complex automation systems. It is primarily used to connect different system components over an Ethernet-based network.

The CI854A-eA is often used for interfacing with devices that support Modbus TCP/IP and other industrial communication protocols. This allows the system to interface with equipment like PLCs, RTUs, and other field instruments.

Product Parameters and Specifications:

• Module Type: Communication Interface Module (Ethernet)
• Model: CI854A-eA (3BSE030221R2)
• Supported Protocols:
  • Modbus TCP/IP
  • Ethernet/IP
  • Other industrial communication protocols as configured
• Interface:
  • Ethernet communication (10/100 Mbps)
  • Supports standard TCP/IP networks
• I/O Capacity: Depends on the configuration and connected devices, typically supports a high number of I/O channels.
• Power Supply: Supplied from the system’s power supply network (requires 24 V DC typical).
• Mounting: DIN rail mounted or installed in an appropriate chassis.
• Operating Temperature: Typically from 0°C to 55°C.
• Storage Temperature: -40°C to +70°C.
• Humidity: 5% to 95%, non-condensing.
• Certifications: CE, UL, and other relevant industry standards for safety and electromagnetic compatibility (EMC).
• Redundancy: Can be part of a redundant network for high availability systems, with failover capabilities.

Product Use:

• Communication: The CI854A-eA module is used to enable communication between an ABB 800xA system and other field devices or control systems that support Ethernet communication protocols like Modbus TCP/IP.
• Integration: It’s widely used in applications where integration of various third-party systems into an ABB DCS is required, such as:
  • Process automation in industries like chemical, oil & gas, power, and water treatment.
  • Integration with equipment like PLCs, SCADA systems, or other controllers.
• Data Transfer: It facilitates data exchange between different components, enabling real-time monitoring and control.
• Scalability: It allows the control system to scale by connecting additional devices or controllers without needing extensive reconfiguration, making it suitable for large and complex industrial systems.

Applications:

• Manufacturing Automation: To provide communication between controllers, sensors, and actuators within production lines.
• Energy Management: In power plants or substations, to gather data from field devices and communicate with the central control system.
• Process Control: In industries such as oil & gas, petrochemicals, water treatment, and pharmaceuticals, where robust, reliable communication is essential for system reliability and safety.

Key Benefits:

• High-speed communication for real-time data exchange.
• Flexible integration with multiple industrial protocols.
• Redundancy support for high availability systems.
• Easy to install and configure, especially when scaling automation systems.
