ABB+AO810V2 3BSE038415R1

Description

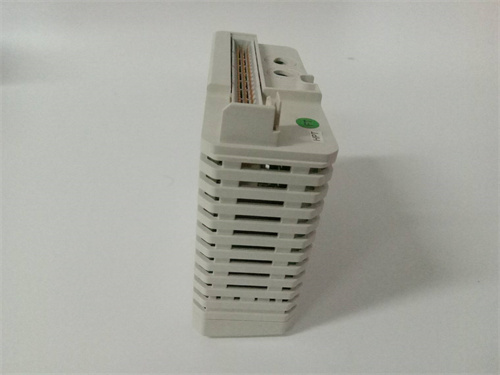

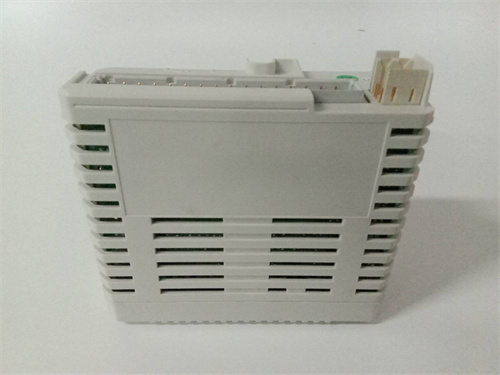

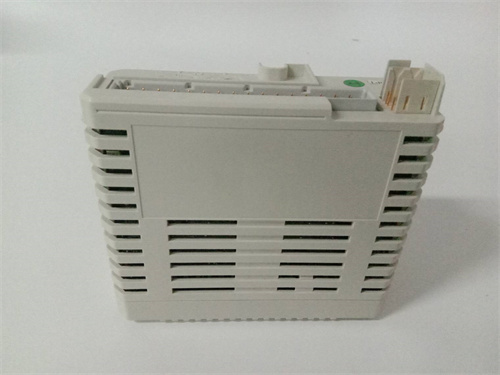

The ABB AO810V2 is an analog output module commonly used in automation and control systems.

Product Name

ABB AO810V2

Catalog Number: 3BSE038415R1

Product Description

The ABB AO810V2 is an analog output module designed for use in industrial automation systems. It interfaces with programmable logic controllers (PLCs) and distributed control systems (DCS) to provide analog outputs for controlling processes. This module can handle different types of signals and is typically found in systems that require precise control over various manufacturing and processing applications.

Product Parameters

Number of Outputs: Typically configured with multiple channels (e.g., 8 outputs).
Output Signal Types: 4-20 mA, 0-10 V, etc.
Resolution: 12 or 16-bit resolution depending on the configuration.
Isolation: Galvanic isolation between channels and the backplane.

Specifications

Power Supply: Operates with a typical range, often requiring a DC power supply.
Operating Temperature Range: -20°C to +60°C (exact range can vary by model).
Storage Temperature Range: -40°C to +85°C.
Dimensions: Specific dimensions available in the detailed product datasheet.
Weight: Various weights depending on the configuration and modules used.

Product Use

The AO810V2 module is primarily utilized in:
Process Automation: To control motors, valves, and other equipment by providing analog control signals.
Data Acquisition: As part of a control system to capture real-time data from sensors and adjust outputs accordingly.
Integration in Systems: Works seamlessly with other ABB products and third-party systems in a control environment.
