Description

Product Name

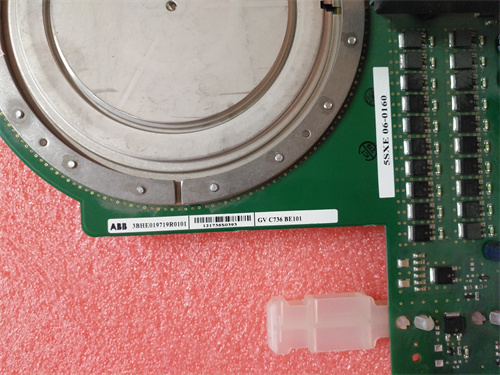

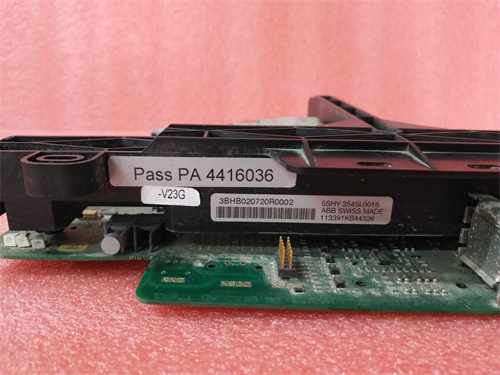

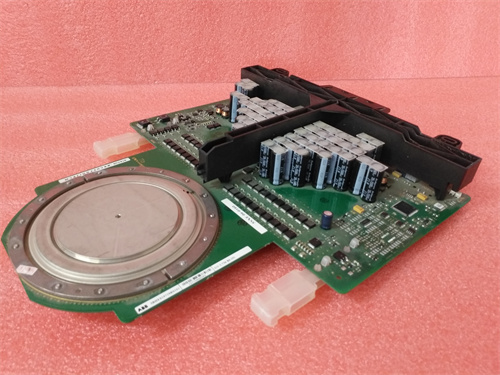

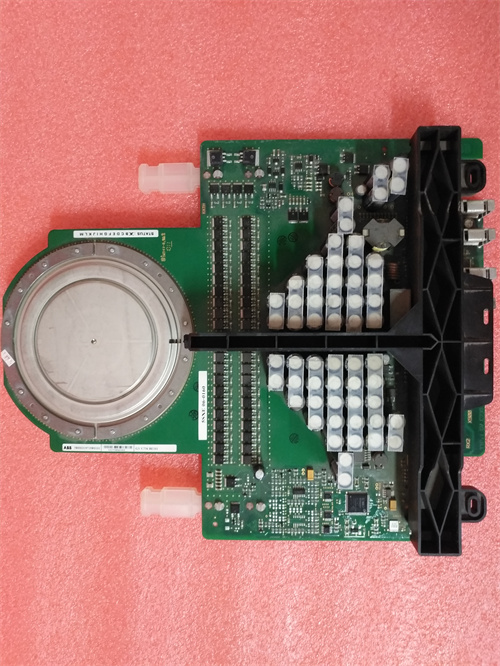

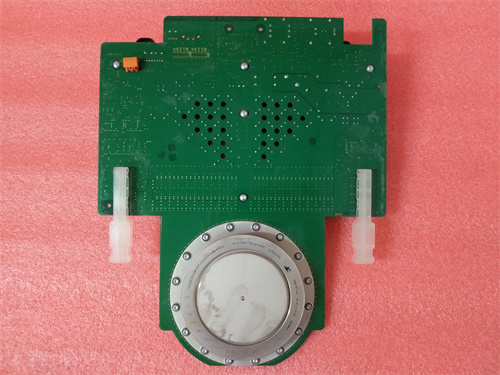

• ABB 5SHY3545L0016 3BHB020720T0002

Product Description

The part number 5SHY3545L0016 corresponds to a power module used in industrial automation applications, especially in systems like HVAC (Heating, Ventilation, and Air Conditioning) or industrial motor control systems. It’s often part of ABB’s Drives and Power Conversion portfolio. The product may function as a power control unit, controlling the output to motors or other equipment requiring variable speed and torque control.

This module can be part of a larger control system for industrial processes, providing power, protection, and interface capabilities in harsh operating environments.

Product Parameters & Specifications

While exact specifications can vary based on the application, typical parameters for ABB modules of this type include:

1. Rated Input Voltage: Typically ranges from 380V to 480V AC (depending on regional standards).
2. Output Voltage: Provides controlled variable output depending on system needs (AC or DC).
3. Power Rating: Usually in the range of 3-15 kW or higher for industrial motors.
4. Operating Frequency: 50Hz to 60Hz AC input.
5. Current Rating: Varies based on application but generally ranges from 10-50A.
6. Protection: Includes over-voltage, under-voltage, short circuit, over-temperature, and overcurrent protections.
7. Control Interface: Typically includes a variety of control input/output options like MODBUS, CANopen, and digital/analog inputs for integration with other systems.
8. Environmental Conditions: Designed to operate in industrial environments, with protection against dust, moisture, and temperature extremes.

Product Use

This module is primarily used in industrial automation systems, especially where precise motor control is needed. Some possible use cases include:

• Motor drives for industrial machinery (pumps, conveyors, fans, etc.).
• HVAC systems for efficient control of fans, compressors, and other equipment.
• Robotics for controlling the movement of motors with variable speed and torque.
• Process control applications requiring variable-speed motor control.
