ABB+5SDF0860H0003

Description

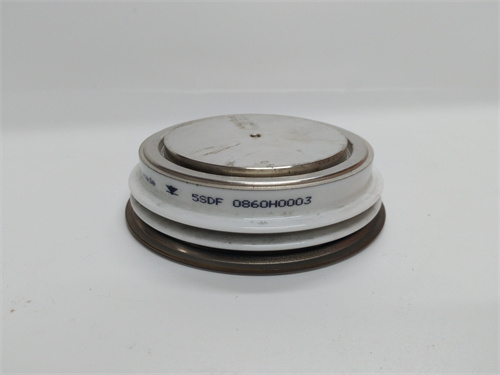

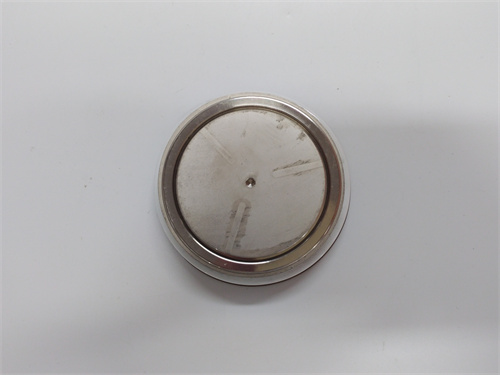

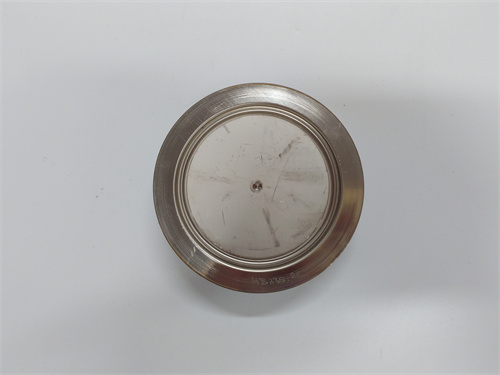

The ABB 5SDF0860H0003 is a type of Silicon Controlled Rectifier (SCR), which is a semiconductor device commonly used for controlling and rectifying electric power.

Product Name

ABB 5SDF0860H0003 SCR

Product Description

The ABB 5SDF0860H0003 is designed for high-performance applications where efficient power control and rectification are essential. SCRs are used to manage high voltages and currents, making them ideal for industrial applications.

Product Parameters

• Type: Silicon Controlled Rectifier (SCR)
• Voltage Rating: Typically around 800V (may vary by model)
• Current Rating: Approximately 60A (may vary by model)
• Package Type: Typically available in standard packaging for ease of integration
• Thermal Resistance: Designed for efficient heat dissipation

Specifications

• Maximum Repetitive Peak Reverse Voltage (V_RRM): 800V
• On-State Voltage Drop (V_T): Typically around 1.5V at rated current
• Maximum Average On-State Current (I_T(AV)): 60A
• Surge Current Rating (I_TSM): Typically around 600A (for a short duration)
• Operating Temperature Range: -40°C to +125°C
• Gate Trigger Current (I_GT): Specified for optimal gate operation

Product Use

The ABB 5SDF0860H0003 SCR is commonly used in:

• Motor Control: To manage the speed and torque of AC motors.
• Power Supplies: For rectifying AC to DC in industrial power supply systems.
• Heating Control: In applications like electric furnace control.
• Phase Control: In lighting and heating applications to control power delivery.
