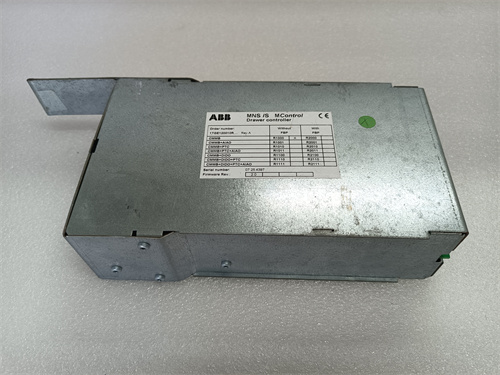

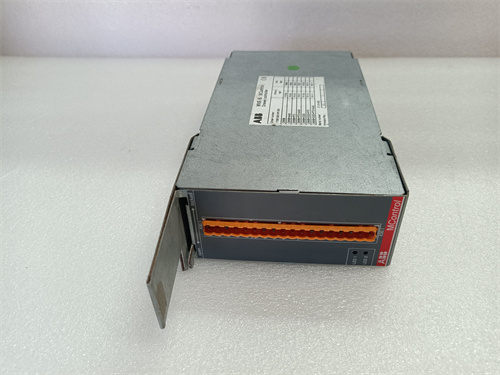

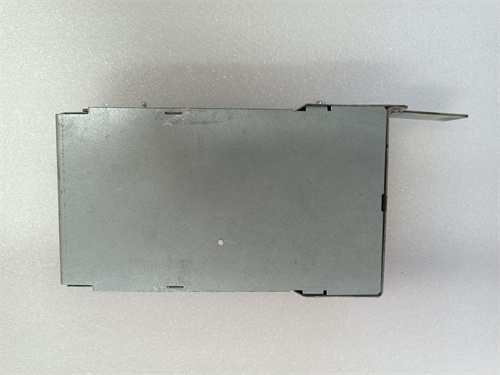

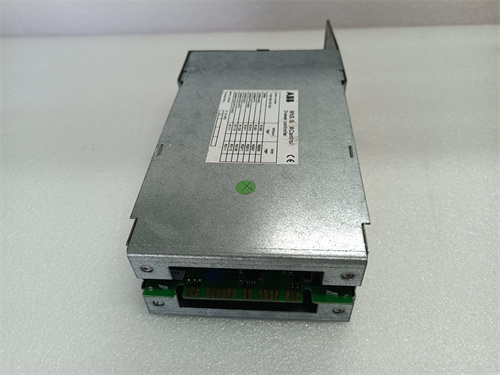

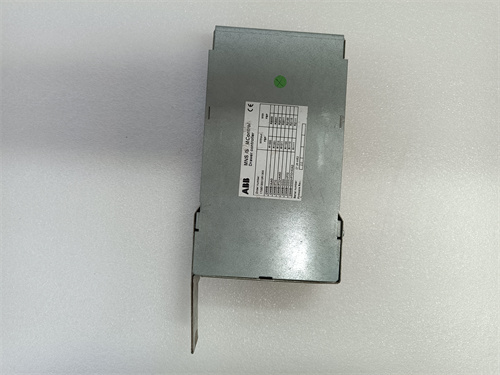

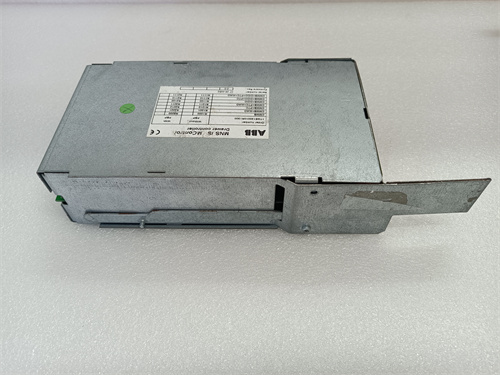

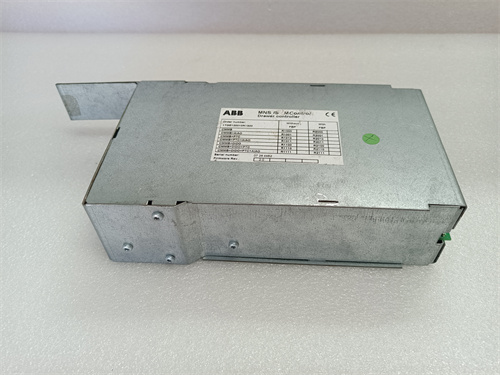

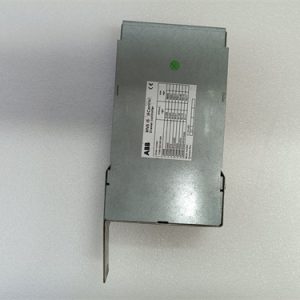

ABB+1TGE120010R… Rev.A

Description

* * Product Name :* *

ABB+1TGE120010R… Rev.A module

* * Product Description :* *

This module is a compact and powerful unit that acts as a communication gateway between the field equipment and the central control system. It is equipped with various input/output channels, communication ports and processing capabilities to efficiently handle complex control tasks. The module supports multiple communication protocols and can be seamlessly integrated with different devices and systems.

** Product parameters and specifications :**

– Input channel: analog input, digital input
– Output channel: analog output, digital output
– Communication ports: Ethernet, serial, USB
– Communication protocol :Modbus TCP/IP, Modbus RTU, DNP3
– Processor :ARM Cortex
– Memory :Flash Memory and RAM
– Power supply :24VDC
– Operating temperature :-20 ° C to 60 ° C
– Enclosure :IP65 rating

* * Product Use :* *

For a variety of applications in industrial control and automation systems. Some common uses include:

– Remote monitoring and control of field equipment
– Data acquisition and reporting
– Alarm and event notification
– SCADA system integration
– Protocol conversion and data mapping

Overall, this module provides reliable and efficient operation in demanding industrial environments, providing seamless connectivity and control for critical processes.
