AB+2711P-T12C4D8

Description

The AB+2711P-T12C4D8 refers to a product model from the Allen-Bradley PanelView Plus 7 series. This is a touch screen human-machine interface (HMI) designed for industrial automation, used for machine control, monitoring, and operation.

Product Name:

AB+2711P-T12C4D8

• Brand: Allen-Bradley (Rockwell Automation)
• Product Line: PanelView Plus 7
• Display Type: Touchscreen HMI (Human Machine Interface)

Product Description:

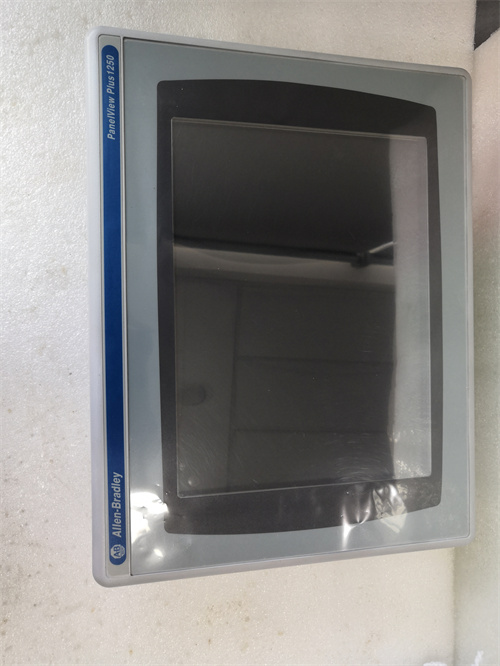

The AB+2711P-T12C4D8 is a 12-inch color touchscreen display with a built-in processor and memory designed for industrial automation environments. The HMI allows operators to interact with machines and processes through graphical user interfaces (GUIs), providing control, monitoring, and diagnostics capabilities. It offers a highly intuitive interface with enhanced graphical features for seamless communication between the operator and the control system.

This model is equipped with a resistive touch screen and can be used in a variety of industries including manufacturing, process control, energy, and more. It supports a wide range of control and monitoring tasks, such as adjusting machine parameters, reading data, and viewing graphical representations of operational processes.

Product Parameters & Specifications:

• Display Size: 12.1-inch TFT LCD color touchscreen
• Resolution: 800 x 600 pixels (SVGA)
• Touchscreen Type: Resistive touch technology
• Backlight: LED
• Processor: 1.6 GHz (Celeron) with high-speed processing power
• Memory:
  • RAM: 2 GB DDR3
  • Storage: 8 GB Flash (standard), expandable with external storage (USB)
• Input/Output Ports:
  • 1 x Ethernet port (for network communication)
  • 2 x USB ports (for external devices and storage)
  • 1 x RS-232/RS-485 serial communication port
• Communication Protocols Supported:
  • EtherNet/IP
  • Modbus TCP
  • DF1 (Serial)
  • OPC
  • ControlNet (optional, depending on configuration)
• Power Supply: 24V DC
• Operating Temperature Range: 0°C to 55°C (32°F to 131°F)
• Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)
• Mounting Type: Panel mount (flush or with bezel)
• Safety Rating: UL, CE certified

Product Use:

• Industrial Control: Used to interface with programmable logic controllers (PLCs) to monitor and control processes or machinery.
• Real-Time Monitoring: Provides real-time data, alarms, and trend information, allowing operators to quickly respond to changes in the production environment.
• Graphical User Interface (GUI): Users can create custom graphical interfaces for monitoring machine parameters, production rates, or operational states.
• Data Logging and Alarms: Capabilities for logging historical data and setting up alarms to notify operators of system issues or abnormal conditions.
• Remote Access: Supports remote access via web browsers or mobile devices for operators or engineers to monitor and control the system from remote locations.
• Multi-Language Support: Can be configured for various languages depending on the needs of the operators in different regions.
