AB+1756-L63

Description

The AB+1756-L63 is a programmable logic controller (PLC) module produced by Rockwell Automation. It is part of the Allen-Bradley ControlLogix series.

**Product Name:**

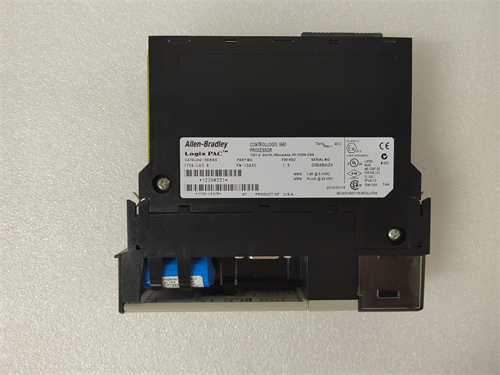

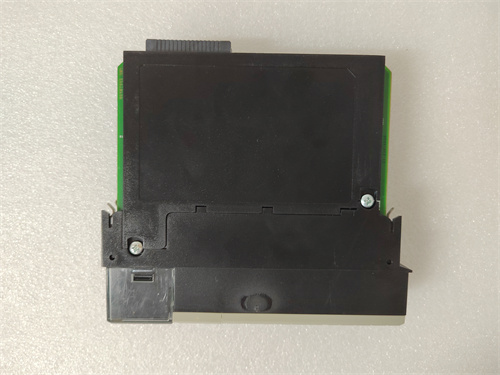

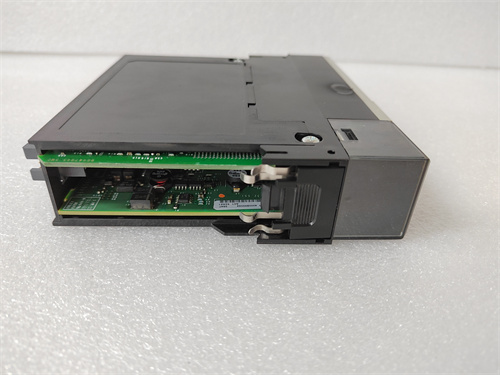

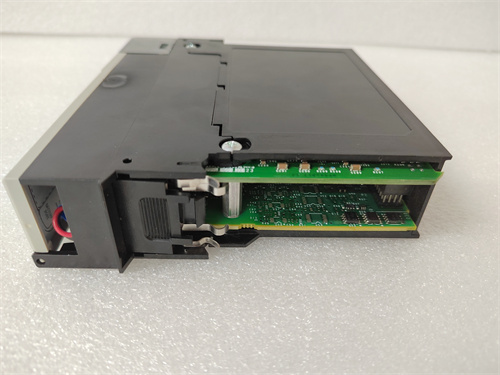

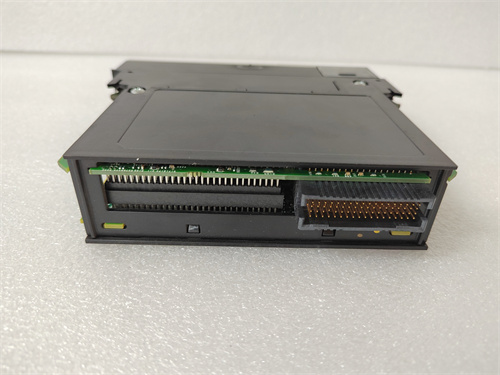

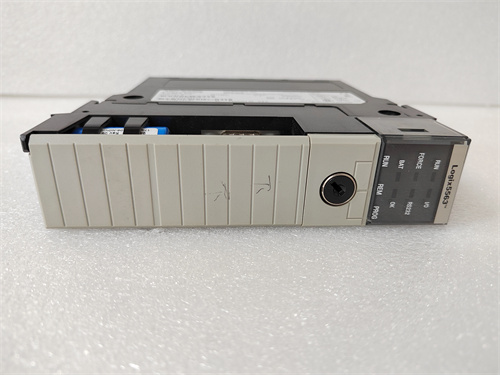

Allen-Bradley 1756-L63 ControlLogix Programmable Logic Controller (PLC) Processor Module

**Product Description:**

The 1756-L63 is a high-performance PLC processor module designed for use in the ControlLogix system. It is engineered to handle complex control applications, offering advanced capabilities for process and motion control. This module features a robust processing power, large memory capacity, and extensive communication options to facilitate sophisticated automation tasks.

**Product Parameters and Specifications:**

– **Processor Type:** ControlLogix Processor
– **Processor Speed:** 1 GHz
– **Memory:** 4 MB of user memory (non-volatile)
– **I/O Capacity:** Scalable, with support for up to 256 I/O modules
– **Communication Ports:** Ethernet/IP, DeviceNet, ControlNet (via optional communication modules)
– **Operating Temperature:** 0°C to 60°C (32°F to 140°F)
– **Storage Temperature:** -25°C to 70°C (-13°F to 158°F)
– **Mounting Type:** Chassis-mounted in a ControlLogix rack
– **Power Requirements:** 5V DC from the backplane (Power supply specifications depend on the overall system configuration)
– **Dimensions:** Varies based on the specific rack configuration
– **Standards Compliance:** UL, CE, and other international standards

**Product Use:**

The 1756-L63 is used in a variety of industrial automation applications, including:

– **Manufacturing:** For controlling production lines, assembly processes, and machine operations.
– **Process Control:** For managing and monitoring complex process systems such as chemical processing or oil refining.
– **Motion Control:** In applications requiring precise control of motors, actuators, and other moving components.
– **Building Automation:** For controlling HVAC systems, lighting, and other building management systems.

This module provides high-speed processing and extensive functionality for handling complex and demanding control applications, making it suitable for a wide range of industrial and commercial uses.

AB+1756-L63
