AB 1756-PA75

Description

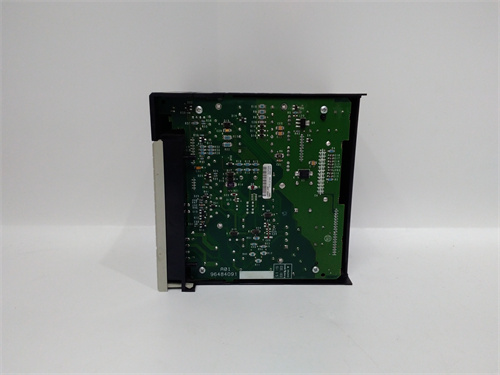

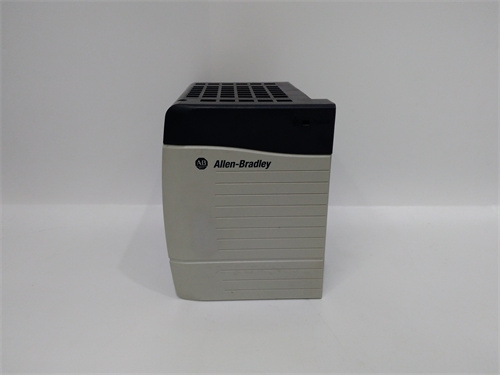

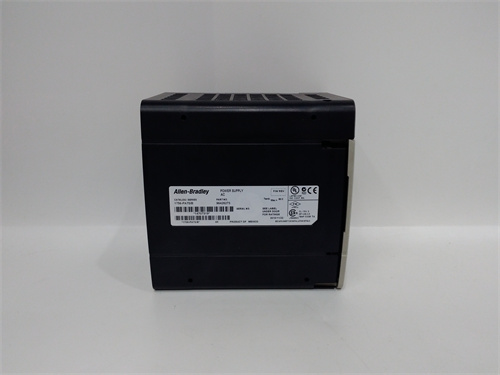

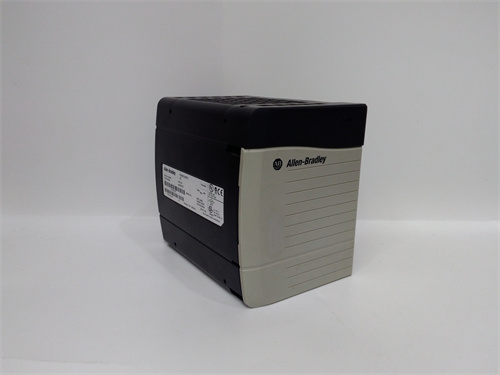

The Allen-Bradley 1756-PA75DCS is a PLC (Programmable Logic Controller) power supply module.

Product Name:

Allen-Bradley 1756-PA75DCS PLC Power Supply Module

Product Description:

The 1756-PA75DCS power supply module is designed to provide power to the 1756 ControlLogix chassis in a ControlLogix system. It is part of the Allen-Bradley ControlLogix series of PLC modules.

Product Parameters:

– Input Voltage: 85-265V AC
– Output Voltage: 24V DC
– Output Current: 7.5A
– Overload Protection: Yes
– Mounting Type: DIN Rail
– Operating Temperature: 0-60°C
– Dimensions: Approximately 215 x 122 x 130 mm

Product Specifications:

– Input Voltage: 85-265V AC, 47-63Hz
– Output Voltage: 24V DC
– Output Current: 7.5A
– Power Consumption: 180W max
– Overload Protection: Yes
– Short-Circuit Protection: Yes
– Thermal Protection: Yes
– Isolation Voltage: 2500V
– Continuous Isolation Current: 9mA
– Certifications: cULus, CE, C-Tick

Product Use:

The 1756-PA75DCS power supply module is typically used in industrial automation applications where reliable power supply is required for the ControlLogix PLC system. It provides regulated 24V DC power to the backplane of the ControlLogix chassis, enabling the operation of the PLC modules and devices connected to it. The module ensures stable and continuous power supply to the control system, which is essential for the proper functioning of the automation process.
