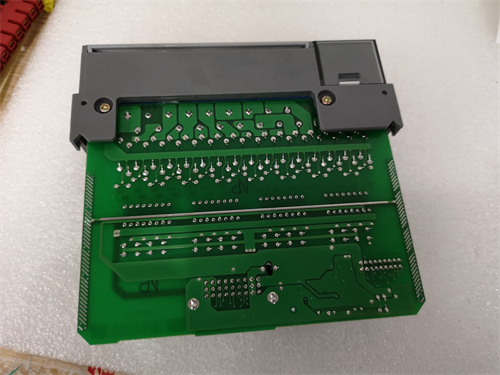

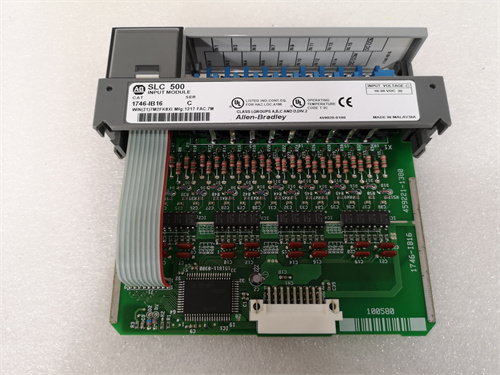

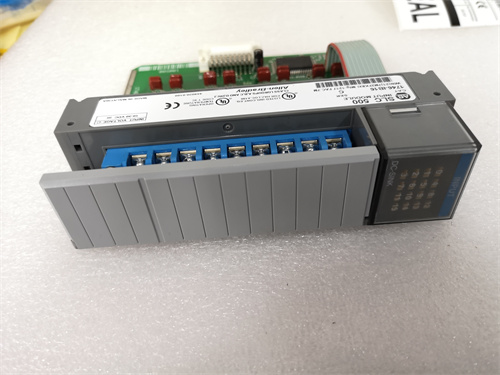

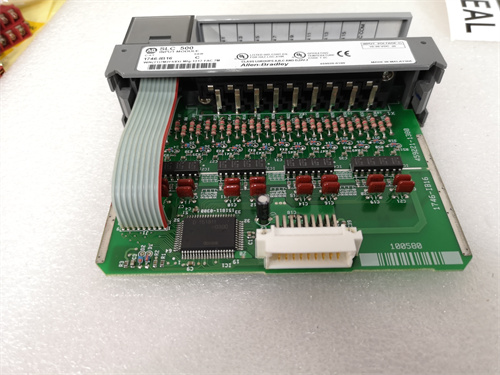

Allen-Bradley 1746-IB16 DC Input Module

Product Description:

The Allen-Bradley 1746-IB16 is a digital DC input module with 16 inputs. It is designed to interface with Allen-Bradley SLC 500 programmable logic controllers (PLCs) to monitor the status of DC devices and provide input signals to the PLC.

Product Parameters:

– Number of Inputs: 16
– Input Voltage Range: 5-24V DC
– Input Current: 6 mA at 5V DC, 12 mA at 24V DC

Specifications:

– Operating Temperature: 0-60°C (32-140°F)
– Storage Temperature: -40-85°C (-40-185°F)
– Operating Altitude: Up to 2000 meters (6562 feet)
– Shock Resistance: 30g operational, 50g non-operational
– Vibration Resistance: 5g from 10-500 Hz

Product Use:

The Allen-Bradley 1746-IB16 DC Input Module is used in industrial automation applications where monitoring the status of DC devices, such as pushbuttons, limit switches, and sensors, is necessary. It provides digital inputs to the PLC for processing and control purposes, allowing for seamless integration of the input signals into the control system.
