– **Product Name:**

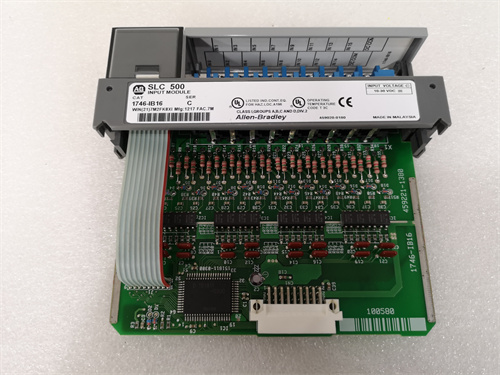

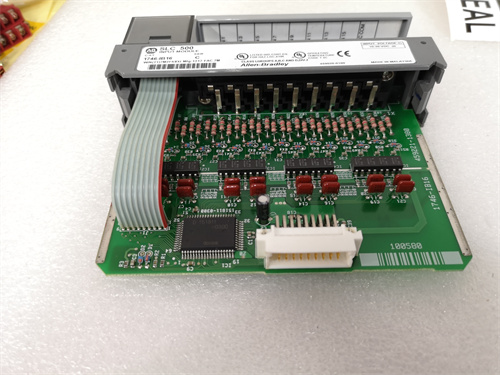

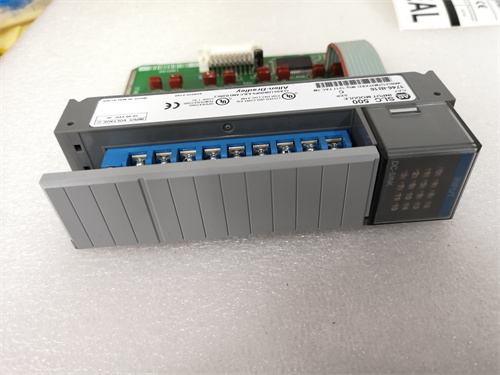

AB 1746-IB16DCS Digital DC Input Module

– **Product Description:**

The AB 1746-IB16DCS module provides 16 digital input channels compatible with DC voltage signals. It is designed to be used in industrial automation applications to monitor the status of external devices or sensors.

– **Product Parameters:**

– Input Type: Digital DC
– Number of Inputs: 16
– Input Voltage Range: 10-30V DC
– Input Current: 7 mA at 5V DC

– **Specifications:**

– Operating Voltage: 10-30V DC
– Continuous Current per Module: 120 mA max
– Signal Delay: 0.5 ms max ON/OFF
– Isolation: Optically isolated
– Operating Temperature: 0-60°C (32-140°F)

– **Product Use:**

The AB 1746-IB16DCS module is used to interface external devices or sensors with the Allen-Bradley SLC 500 PLC. It is commonly used in manufacturing, process control, and other industrial automation applications where digital input signals need to be monitored and controlled.

Overall, the AB 1746-IB16DCS module is a reliable and versatile digital input module that offers precise monitoring and control capabilities for various industrial automation systems.
