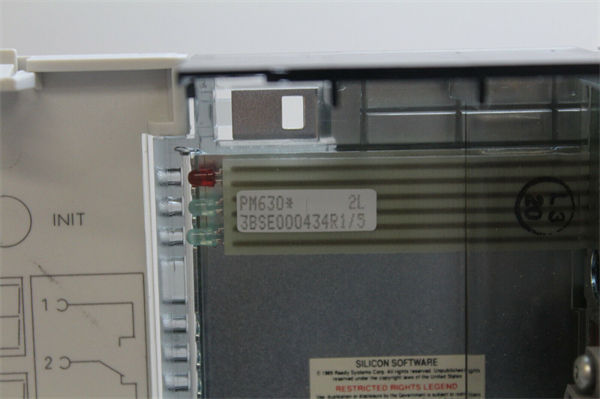

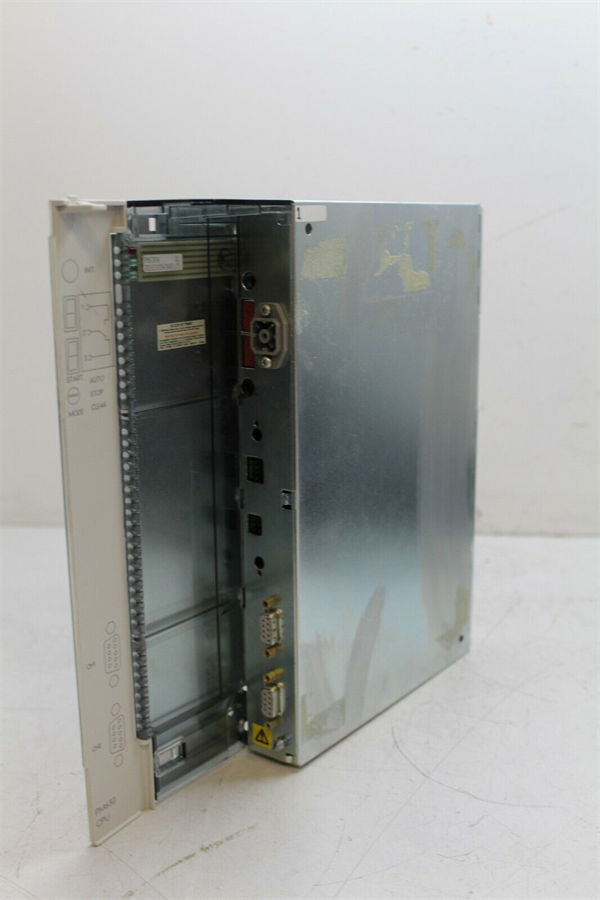

The ABB PM630 is a power monitoring module designed for energy management in electrical systems.
Product Name:
ABB PM630 Power Monitoring Module
Product Description:
The ABB PM630 is a multi-function power meter that provides comprehensive monitoring and analysis of electrical parameters in medium and low-voltage systems. It is designed to enhance energy efficiency, reduce operating costs, and ensure electrical safety by providing crucial insights into energy consumption and quality. The PM630 is capable of measuring a wide range of electrical parameters and offers connectivity options for integration into various automation systems.
Product Parameters:
- Measurement Types: Voltage, current, active power, reactive power, apparent power, power factor, energy consumption (active/reactive), and frequency.
- Input Voltage Range: Typically supports several voltage ranges up to 600V AC.
- Current Measurement: Can be connected to CTs (current transformers) for measurement of current.
- Communication Protocols: Supports Modbus, Profibus, and Ethernet communications.
- Display: LCD for real-time monitoring of electrical parameters.
- Data Logging: Capable of storing historical data for analysis and reporting.
Specifications:
- Accuracy: Typically ±0.5% of reading.
- Operating Temperature Range: -20 to 60 °C.
- Power Supply: Usually powered via the measured voltage or an external DC source.
- Dimension: Various dimensions based on panel-mounted configurations.
- Mounting Type: Panel-mounted for easy installation in control cabinets.
- Protection Rating: Generally IP54 or higher, suited for various environmental conditions.
Product Use:
The ABB PM630 module is extensively used in:
- Industrial Plants: For monitoring energy consumption and improving power quality.
- Commercial Buildings: To track and optimize energy usage, improving energy efficiency.
- Utility Services: For real-time monitoring of electrical networks.
- Data Centers: To manage power loads and ensure reliability of critical IT systems.
- Renewable Energy Systems: For monitoring energy production and consumption.
