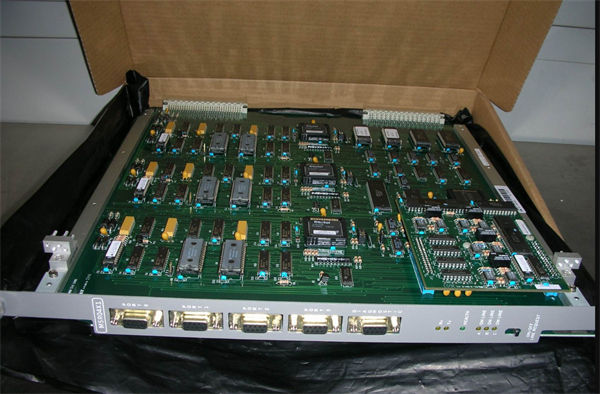

ABB MSR04XI

The ABB MSR04XI module is part of the ABB’s range of process automation and control products. Specifically designed for managing signals from various field devices, it serves as an interface between sensors and the control system.

Product Name

ABB MSR04XI Module

Product Description

The ABB MSR04XI module is designed for the acquisition and processing of signals from analog and discrete inputs. It can handle a variety of input types including 4-20 mA, 0-10 V, and digital signals. The module typically features isolation between input and output channels, enhancing system reliability and safety. The MSR04XI is known for its ease of integration into existing control systems and functions effectively in diverse industrial environments.

Product Parameters and Specifications

• Input Types:
  • Analog: 4-20 mA, 0-10 V
  • Discrete: Contact closure, digital signals
• Number of Channels: Typically supports multiple input channels (e.g., 4 or 8, depending on the model).
• Input Range:
  • Voltage: 0-10 V
  • Current: 4-20 mA
• Accuracy: High accuracy and precision in signal transduction.
• Isolation: Galvanic isolation between input signals to prevent noise and interference.
• Operating Temperature Range:
  • Standard industrial temperature ranges (typically -20°C to +60°C).
• Supply Voltage: Commonly 24 V DC, but specifications may vary by context.
• Communication: Can support various communication protocols depending on the system configuration.
• Mounting: DIN rail mounting is commonly supported.

Product Use

The ABB MSR04XI module is used in various industrial automation applications, such as:

• Process Control Systems: To interface with sensors and transmit data to the control system.
• Data Acquisition: To collect data from multiple sources for monitoring and analysis.
• Industrial Monitoring: Used within SCADA (Supervisory Control and Data Acquisition) systems for real-time monitoring.
• Control Logic: Integrating sensor data into control logic for automated processes.
• Building Automation: Used in HVAC systems, lighting controls, and other building management systems.
