The ABB IMDSM04 is an input/output (I/O) module commonly used in industrial automation systems.
Product Name
ABB IMDSM04 Module
Product Description
The ABB IMDSM04 is a digital input/output module designed for use in various automation and control applications. It allows for the integration of digital signals from field devices into a control system and can send output signals to actuators or indicators. This module is part of ABB’s extensive range of modular I/O solutions that enhance system flexibility and scalability.
Product Parameters
- Inputs:
- Number of Digital Inputs: Typically 8
- Input Voltage Range: Standard logic levels (e.g., 24V DC)
- Isolation: Galvanic isolation of inputs
- Outputs:
- Number of Digital Outputs: Typically 8
- Output Voltage Range: Standard logic levels (e.g., 24V DC)
- Output Type: Relay or transistor outputs (depending on the specific model)
- Isolation: Galvanic isolation of outputs
- Communication:
- Supported Protocols: Common industrial protocols (e.g., Modbus, Profibus, etc.)
- Power Supply Requirements:
- Voltage: Typically 24V DC
- Power Consumption: Varies based on module configuration
Specifications
- Form Factor: DIN rail mountable
- Operating Temperature Range: Typically from -20 °C to +60 °C
- EMC Compliance: Standards compliant for industrial environments
- Connector Type: Typically screw terminals or plug-in connectors
Product Use
The ABB IMDSM04 module is widely used in:
- Industrial Automation: To control processes, machines, and systems in manufacturing and production lines.
- Building Automation: For controlling HVAC systems, lighting, and security.
- Process Control: In chemical plants, water treatment facilities, and power generation systems to monitor and control operational parameters.
- OEM Applications: Integrated into original equipment for enhanced control features.

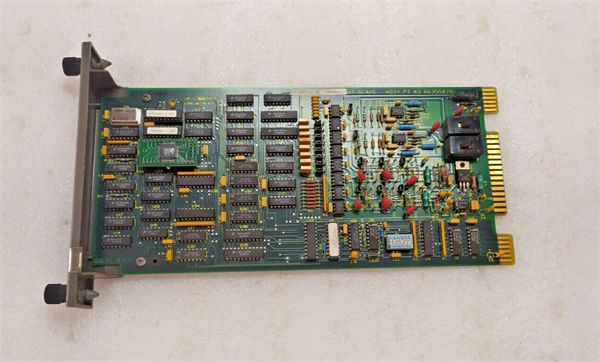

ABB IMDSM04

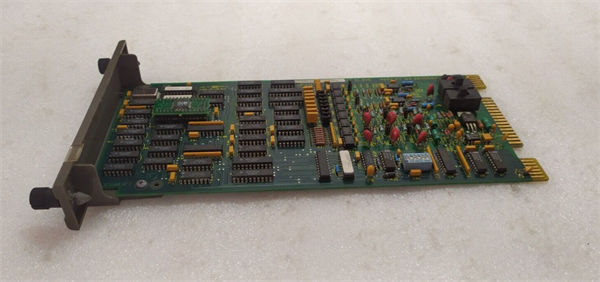

ABB IMDSM04

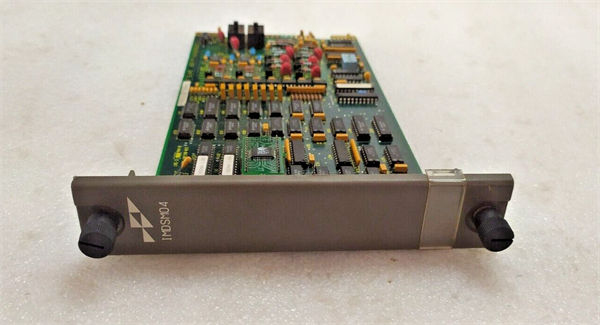

ABB IMDSM04
