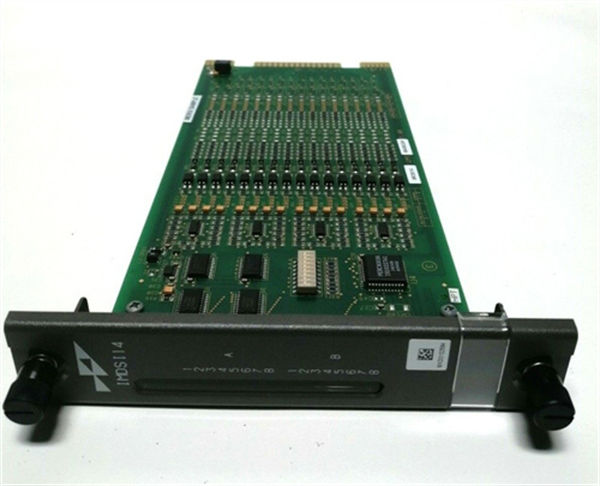

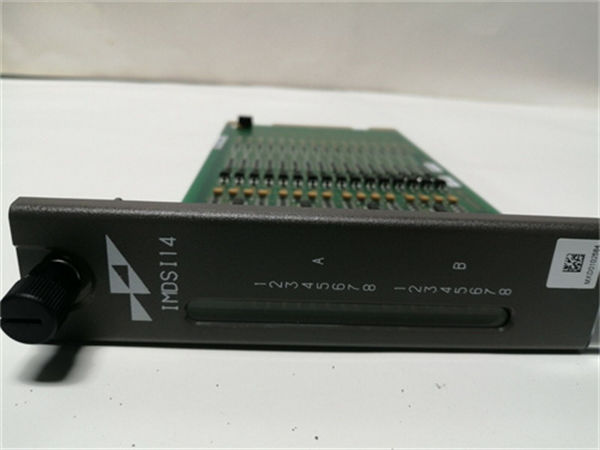

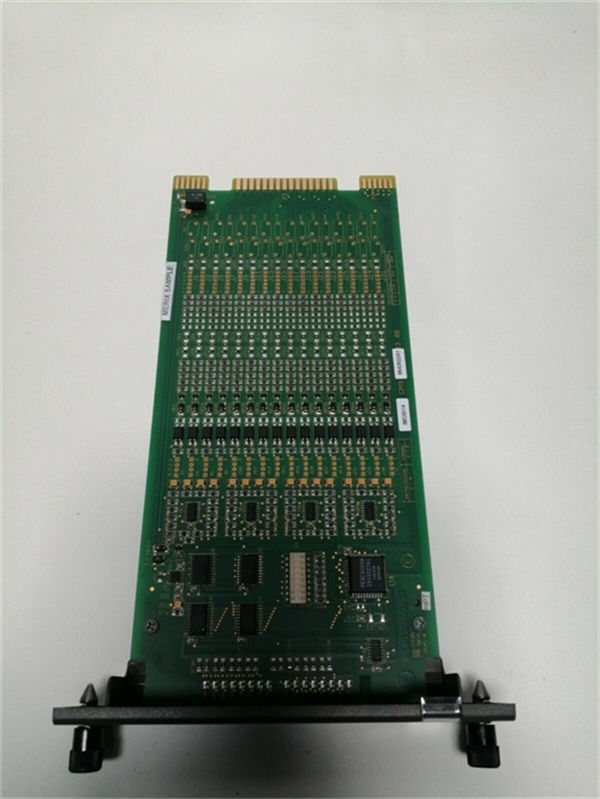

The ABB IMDSI14 module is a specific component of ABB’s broader range of industrial automation and control systems.
Product Name:
ABB IMDSI14 Module
Product Description:
The ABB IMDSI14 module is part of ABB’s DCS (Distributed Control System) and is utilized for interfacing with digital input signals in industrial applications. It helps in collecting, processing, and transmitting data from various field devices, contributing to the overall automation and control system’s functionality.
Product Parameters:
- Input Type: Digital inputs
- Number of Channels: Typically, the module supports up to 14 digital input channels, hence the 14 in its name.
- Input Voltage Range: Commonly supports a range of input voltages based on application requirements.
- Signal Type: Compatible with various digital signal standards (e.g., DC, AC).
Specifications:
- Power Supply: Requires a specific DC/AC power source depending on the application.
- Temperature Range: Rated for operational temperatures typically between -20°C to +60°C, but this may vary based on specific applications.
- Mounting Type: Generally designed for DIN rail mounting for ease of installation in control cabinets.
- Communication Interface: Often integrated with a communication protocol to interface with other control system components, such as Modbus, Profibus, etc.
- Isolation: Provides electrical isolation between input and output to protect against surges and spikes.
Product Use:
The ABB IMDSI14 module is typically used in industrial settings for:
- Monitoring: Collecting the status of various on/off (digital) field devices such as switches, relays, and sensors.
- Control: Integrating with control logic in DCS or PLC systems to execute specific functions based on input signals.
- Data Acquisition: Facilitating the collection of input data for further processing and analysis within the control system.
- Safety and Alarms: Used in systems that require monitoring for safety conditions and triggering alarms based on digital input statuses.
