The ABB DSQC202 is a product from ABB’s extensive range of industrial automation solutions, typically used for controlling industrial robots, particularly in areas like manufacturing, assembly, and material handling.
Product Name:

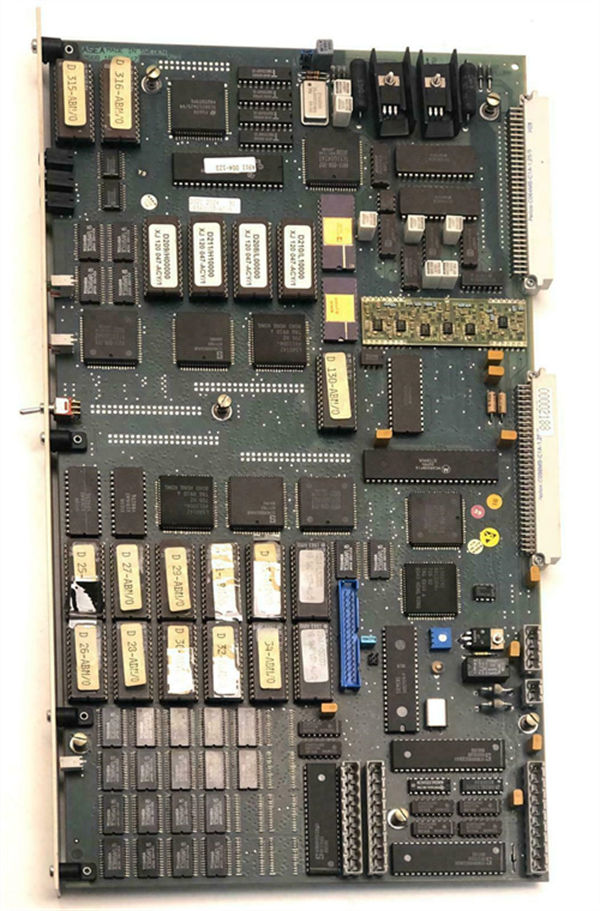

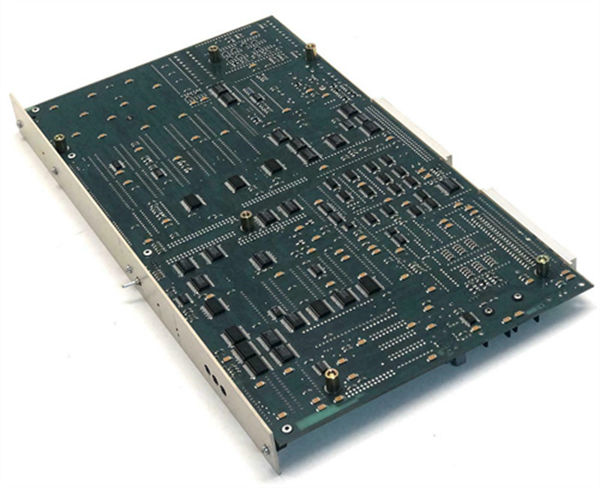

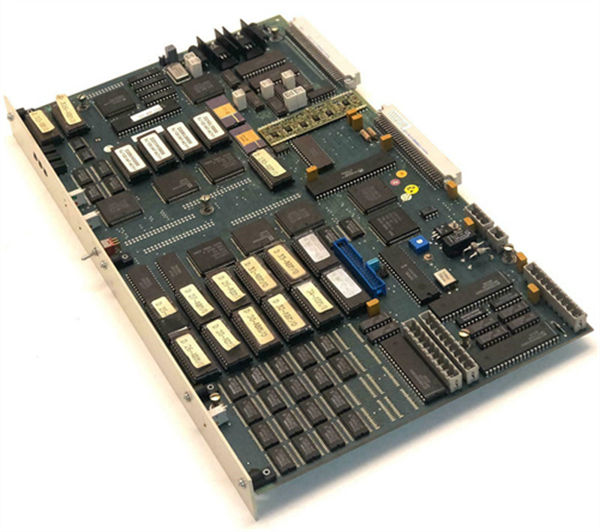

ABB DSQC202
Product Description:
The ABB DSQC202 is a robot controller module, designed as a communication and control interface in industrial robot systems. It is specifically used for controlling the robot’s movements, monitoring its operations, and communicating with other devices in the system. This module is a part of ABB’s Robot Controller (IRC5) family and interfaces with other hardware components like the robot arms, drives, and external systems.
Product Parameters and Specifications:
- Type: Robot Controller Module
- Communication Interface: The DSQC202 module provides communication via standard industrial protocols, such as Ethernet, Fieldbus, or specific protocols depending on the connected equipment.
- Power Supply Requirements: Typically, these modules operate within a specified voltage range (usually 24V DC or as specified by the system).
- Input/Output (I/O): Depending on the configuration, it may include digital I/O channels for sensor or actuator integration.
- Compatibility: Compatible with ABB’s IRC5 and RobotWare systems, enabling integration with various ABB robot arms like IRB 6700, IRB 4600, and others.
- Weight: Varies depending on the specific setup and configuration but generally around 1–3 kg.
- Operating Temperature: 0°C to 55°C (ambient temperature range).
- Mounting Options: Can be installed within the robot controller cabinet.
Product Use:
The ABB DSQC202 module is used in various industrial applications that involve robot control and automation. Some of its common uses include:
- Industrial Robot Control: It is used to control the movement and function of ABB robots in manufacturing, automotive, electronics, and packaging industries.
- Material Handling: Facilitates automation of material handling tasks like picking, placing, packaging, or assembly.
- Precision Assembly: Used in assembly lines requiring high precision, such as in electronics or automotive assembly.
- Welding and Painting: The DSQC202 helps manage robot movements in applications like welding or spray painting, where accuracy and repeatability are key.
- System Communication and Integration: It integrates with external devices such as PLCs, sensors, and safety systems, ensuring smooth coordination and process control.
