The ABB DSAO110 is a module used in various industrial automation and control systems.
Product Name

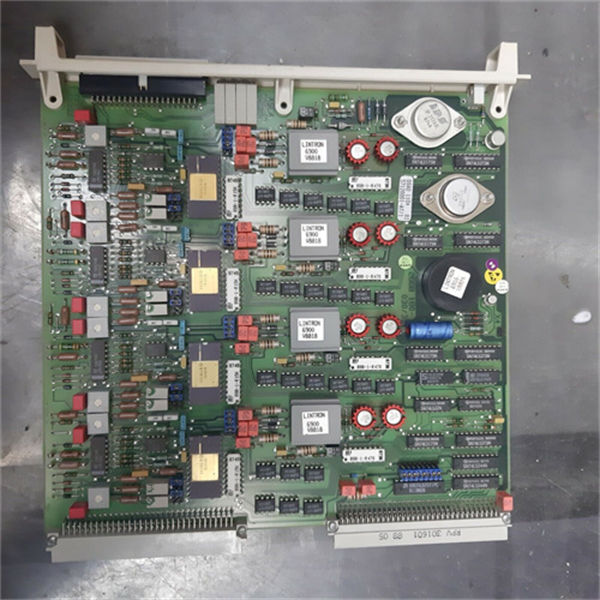

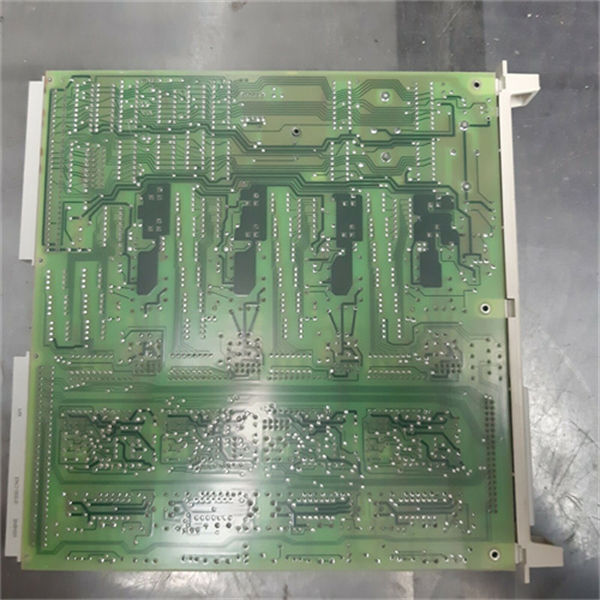

ABB DSAO110 – Analog Output Module
Product Description
The ABB DSAO110 module is an analog output module designed for use in automation systems, typically within ABB’s distributed control systems (DCS), like the 800xA or S800 systems. This module is designed to generate analog signals from digital control systems to various field devices, such as actuators, valve controllers, and other analog-controlled equipment. It provides precise and reliable signal conversion and output in industrial environments.
Product Parameters & Specifications
- Type: Analog Output Module
- Input Signal:
- Digital or control signals from the automation system or controllers.
- Output Signal:
- Voltage Output: 0-10 V or 0-20 mA (standard configurations)
- Current Output: 4-20 mA (typically used for control loops)
- Number of Channels: Typically, 8 output channels per module, but this can vary based on configuration.
- Resolution: 12-bit or 16-bit depending on the system’s configuration.
- Accuracy: ±0.1% of full scale, typical.
- Power Supply:
- Typically powered by the control system, with the exact requirements depending on the system’s voltage standards.
- Environmental Conditions:
- Operating Temperature: Typically, -20°C to +60°C
- Humidity: 5% to 95% RH (non-condensing)
- Housing/Enclosure: Usually enclosed in a DIN-rail mountable, compact casing for easy integration in control panels.
- Communication Protocol: Typically integrates via standard industrial communication protocols like Modbus, Profibus, or Ethernet/IP, depending on system configuration.
- Failure Detection: Built-in diagnostics for detecting faults like open circuit, short circuit, or malfunctioning outputs.
Product Use
The ABB DSAO110 module is primarily used in industrial process control systems where there is a need to control or regulate physical devices (such as valves, motors, or actuators) using analog signals. Its typical applications include:
- Process Control: Controlling the flow, pressure, temperature, or other physical variables in manufacturing processes.
- Power Generation: Managing signals to control turbines, generators, and other equipment.
- Oil and Gas: Controlling valves, pressure regulators, and other field devices.
- Chemical and Pharmaceutical Industries: Maintaining precise control of reactors, pumps, and mixing systems.
- Building Automation: Regulating HVAC systems, lighting, or other energy systems.
- Water Treatment: Managing pumps, valves, and other equipment in water distribution and treatment plants.
The module is critical for any application requiring precise, reliable, and flexible analog outputs to drive field devices and ensure smooth and accurate operations.
