Product Name:

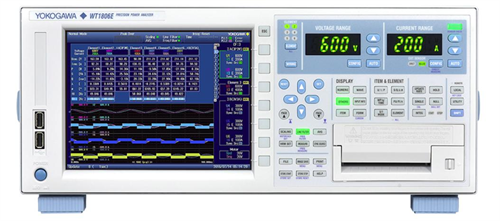

Yokogawa WT1803E Precision Power Meter
Product Description:
The Yokogawa WT1803E is a high-precision power meter designed for comprehensive power and energy analysis. This device is used in applications that require accurate measurement of electrical power, energy, and related parameters in various industries, including R&D, manufacturing, and testing environments. The WT1803E offers exceptional performance with high-speed data processing and versatility in measuring both single-phase and multi-phase electrical systems.
The power meter is capable of measuring various electrical parameters such as voltage, current, frequency, active power, reactive power, apparent power, and power factor. It is widely used in applications like power supply testing, energy consumption analysis, and efficiency monitoring in electrical equipment and systems.
Product Parameters and Specifications:
- Voltage Measurement Range:
- 10 mV to 1000 V (for both AC and DC)
- Current Measurement Range:
- 1 mA to 30 A (for both AC and DC)
- Frequency Range:
- 10 Hz to 1 MHz
- Power Measurement Accuracy:
- Typically ±0.1% of reading (at 50/60 Hz)
- Power Measurement Range:
- Active Power: ±0.1% reading
- Reactive Power: ±0.2% reading
- Harmonic Measurement:
- Harmonic analysis up to 50th order
- Simultaneous Multi-Phase Measurement:
- Can measure up to 4 separate phases simultaneously
- Display:
- 5.7-inch color TFT LCD touch screen with customizable views
- Display real-time measurements, graphs, and historical data
- Communication Interface:
- LAN, USB, GP-IB, RS-232C, Modbus, and SCPI protocol for easy integration into automated systems.
- Data Logging:
- Built-in data logging capabilities to capture measurements over time
- External storage support via USB or network storage for large data sets
- Power Supply:
- AC 100-240 V, 50/60 Hz
- Temperature Range:
- Operating: 0°C to 40°C
- Storage: -10°C to 60°C
- Dimensions:
- Approx. 320 mm (W) × 140 mm (H) × 370 mm (D)
- Weight:
- Approx. 5.5 kg
Product Use:
The Yokogawa WT1803E is widely used in various applications, including:
- Power Consumption Measurement:
- For measuring the power consumption of electrical devices, industrial machines, or systems to optimize energy efficiency and reduce costs.
- R&D and Testing:
- In research and development environments, the device is used for power analysis of prototype devices, electric vehicles (EV), and renewable energy systems.
- Manufacturing and Quality Control:
- Used in manufacturing facilities to monitor and test power usage in production lines, equipment, and machinery, ensuring that products meet energy standards.
- Energy Audits:
- Helps perform detailed energy audits in buildings, industrial complexes, and facilities to identify areas where energy savings can be achieved.
- Solar and Renewable Energy Systems:
- The device supports testing of power generation systems, including solar inverters, wind turbines, and other renewable energy sources to ensure proper operation and efficiency.
- Educational and Training:
- Used in academic institutions for teaching electrical engineering students about power measurement, energy analysis, and efficiency testing.
- Power Quality Analysis:
- Monitors and analyzes the quality of power in electrical grids, detecting issues like voltage sags, surges, harmonic distortions, and other abnormalities.
