MOTOROLA+MVME55006E-0161R

The MOTOROLA MVME55006E-0161R is part of Motorola’s MVME series of embedded computing systems, typically used in industrial, military, telecommunications, and control systems.

Product Name:

MOTOROLA MVME55006E-0161R

Product Description:

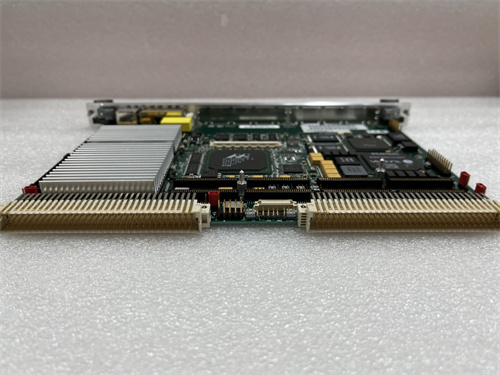

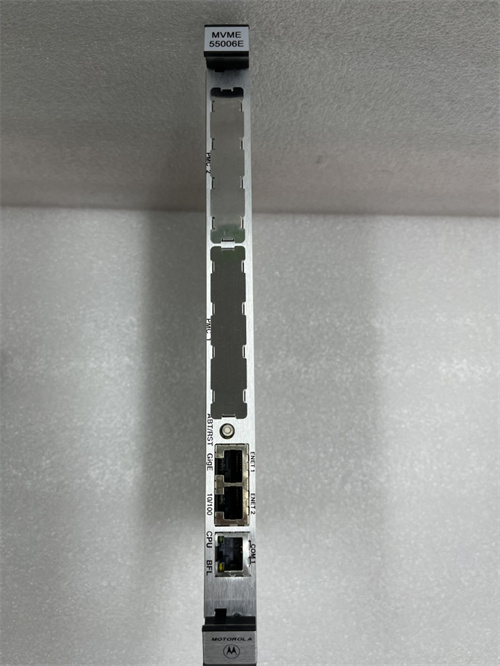

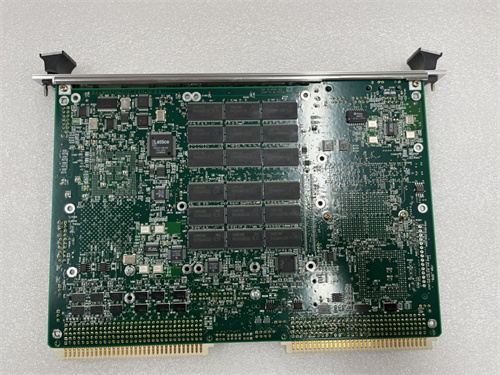

The MVME55006E is a high-performance VMEbus single-board computer (SBC) from Motorola (now part of NXP Semiconductors). It is based on the PowerPC architecture and is often used in mission-critical embedded applications that require high processing power, extended longevity, and ruggedness.

This particular variant (MVME55006E-0161R) is designed to offer excellent performance and versatility for applications where reliability and expandability are key requirements. These systems are generally used in areas where industrial control, automation, and real-time computing are needed.

Key Product Features:

  • Processor: The MVME55006E typically includes a PowerPC 750 processor (or later variants), providing solid performance for real-time applications.
  • Memory: It typically comes with onboard SDRAM, which is upgradeable in some cases. For the MVME55006E, expect up to 512 MB of memory.
  • VMEbus Interface: As part of the VME architecture, this board can be used in a variety of VME-based systems, providing high-speed data transfer and communication capabilities between system components.
  • Operating System Support: The MVME55006E supports a variety of operating systems such as VxWorks, Linux, and others that are optimized for embedded, real-time environments.
  • I/O Expansion: Multiple I/O expansion options, including serial ports, Ethernet, SCSI, and USB, may be available, depending on the configuration.

Product Parameters / Specifications:

  • Processor Type: PowerPC 750 (or later models)
  • Clock Speed: Typically up to 500 MHz (depending on model)
  • Memory:
    • Onboard SDRAM typically ranging from 128 MB to 512 MB
    • Flash memory and/or external storage options available
  • VMEbus Compatibility:
    • Supports VME64 (64-bit) or standard VME32.
    • VME64x support for higher data bandwidth.
  • Networking Interfaces:
    • 10/100/1000 Mbps Ethernet (Gigabit Ethernet typically available)
  • Serial Ports: Several RS-232/RS-422 serial ports for communication.
  • Graphics: May include basic graphics support for display outputs, especially in human-machine interface (HMI) applications.
  • Operating System Support: Supports embedded operating systems such as:
    • VxWorks
    • Linux
    • QNX
    • Windows CE
  • I/O and Expansion Slots: Multiple PCI and other expansion slots for custom add-ons or peripheral support.
  • Power Supply:
    • Typically powered by +5VDC with auxiliary voltage options for specific configurations.
  • Environmental Ratings: Designed for rugged environments, with extended temperature and shock/vibration resistance depending on the specific configuration.

Product Use:

The MVME55006E-0161R is generally used in applications that demand high reliability and performance, including:

  • Industrial Automation: For control systems, real-time monitoring, and automation systems in factories or plants.
  • Defense and Aerospace: Utilized in military and aerospace applications where performance under extreme conditions is necessary.
  • Telecommunications: Embedded in systems for network management, communication infrastructure, and other critical telecom systems.
  • Medical Devices: Used in medical equipment where performance and uptime are critical.
  • Research and Development: Used in laboratories or R&D facilities to prototype and test embedded systems.
  • Transportation and Automotive: In systems where real-time processing, data communication, and rugged reliability are needed, like in avionics or automotive control systems.
