The ICS Triplex T8160 is part of the Triplex Safety System series by Emerson Process Management, designed for use in high-integrity and critical applications. The T8160 module specifically serves in safety, automation, and control systems, focusing on process safety and control applications in industries like oil & gas, chemical processing, and power generation.
Product Name:

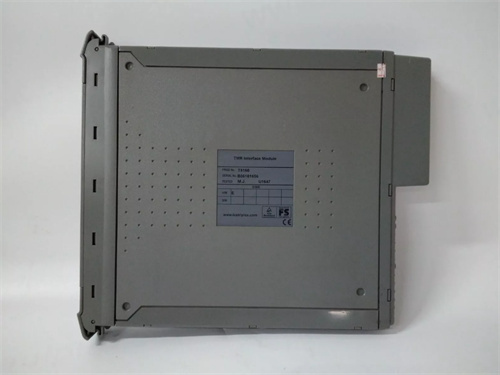

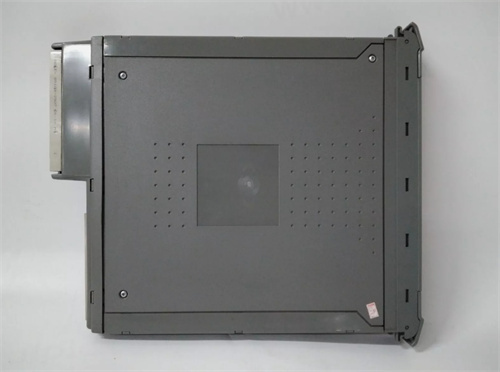

ICS Triplex T8160 Safety Module
Product Description:
The T8160 is a high-performance, fault-tolerant, and redundant safety I/O module designed to interface with Triplex control systems. It is commonly used in Safety Instrumented Systems (SIS) and other critical infrastructure to monitor and control processes that must meet rigorous safety standards. This module provides reliable and effective protection for personnel, equipment, and the environment by performing advanced monitoring, control, and diagnostic functions.
The T8160 integrates easily into the Triplex TMR (Triple Modular Redundant) architecture, offering high availability and fault tolerance to ensure safety-critical operations can continue without disruption, even in the event of module failure.
Product Parameters / Specifications:
- Module Type: Safety I/O Module (Part of Triplex TMR architecture)
- Input/Output Types:
- Digital Inputs: 24 VDC or 120 VAC (depending on configuration)
- Digital Outputs: 24 VDC or 120 VAC (depending on configuration)
- Analog Inputs: 4–20 mA or 0–10 VDC
- Analog Outputs: 4–20 mA
- Redundancy: Triple Modular Redundant (TMR) for fault tolerance
- Signal Isolation: Galvanic isolation for protection against electrical surges and noise
- Communication Protocol: Modbus, Profibus, or proprietary communication for integration with other controllers and systems
- Power Supply: 24 VDC or other suitable configurations based on system requirements
- Size: Typically fits within standard industrial control panel racks
- Environment: Designed to operate in harsh industrial environments with wide temperature ranges and high humidity tolerance
- Certification:
- SIL3: Meets Safety Integrity Level 3 requirements for high safety standards
- FM, ATEX (optional for hazardous areas): Certifications for use in explosive or hazardous environments
- IEC 61508/IEC 61511 compliant
Key Features:
- TMR Architecture: Provides triple redundancy and increased system reliability.
- Diagnostics: Built-in diagnostic capabilities to monitor module health and system status, reducing downtime.
- Compatibility: Fully integrates with Triplex control systems and other Emerson systems.
- Safety: Certified to meet SIL3 (Safety Integrity Level) standards for critical safety applications.
- Flexible Inputs/Outputs: Supports a range of I/O types for diverse industrial applications.
Product Use:
The T8160 safety module is used in industries requiring robust and reliable safety monitoring and control, particularly in the following applications:
- Safety Instrumented Systems (SIS): Used to monitor safety-critical processes and take action to mitigate hazardous events.
- Process Control: Implemented in processes where maintaining operational safety and reliability is crucial.
- Emergency Shutdown Systems (ESD): Ensures the safe shutdown of systems in case of dangerous or out-of-tolerance conditions.
- Burner Management Systems (BMS): Provides control and safety for combustion processes.
- Oil & Gas, Chemical, and Power Industries: Used for managing critical assets and preventing catastrophic failures.
